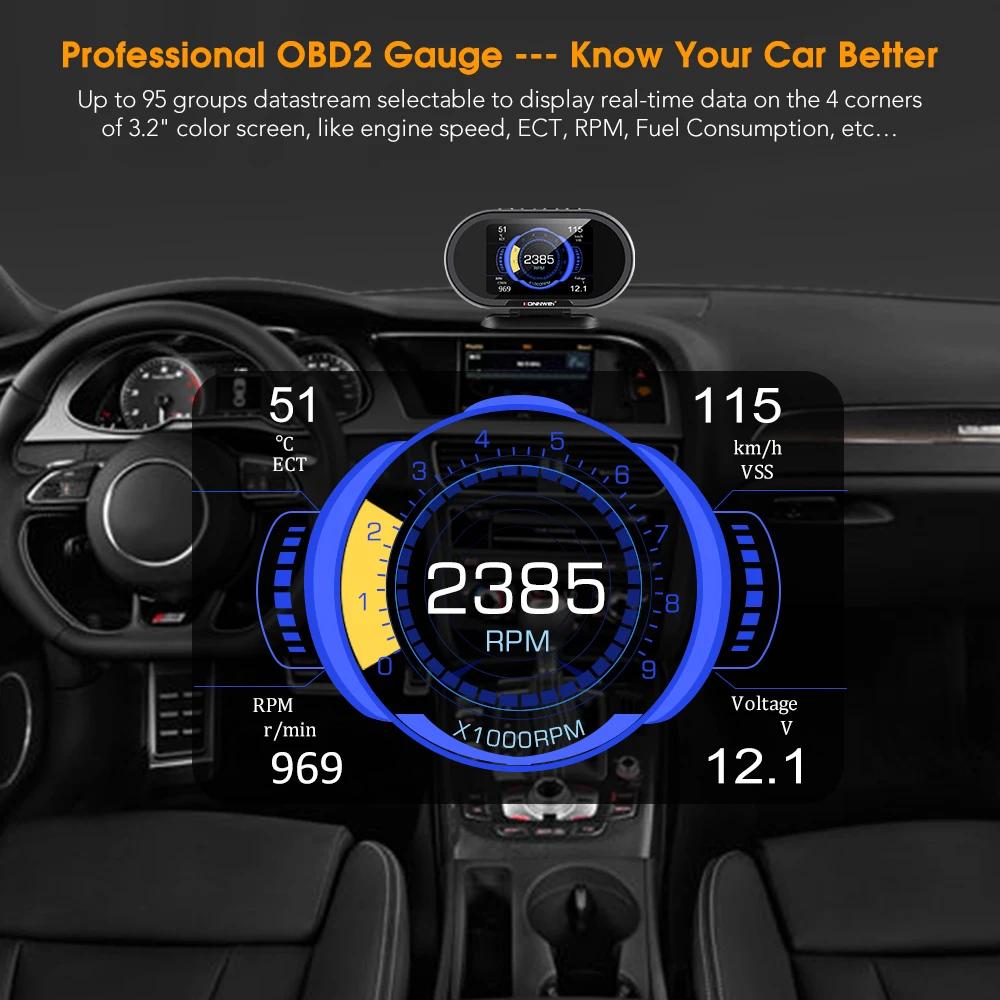

The KONNWEI KW206 OBD computer is a smart and powerful auto meter gauge. It is specially designed for vehicles to show all live data in one screen, It's a combination of speedometer, engine temperature gauge, oil thermometer, boost gauge, fuel consumption meter and so on.
The KW206 can also monitor and display the battery voltage, over speed alarm, engine temperature warning, acceleration test, as well as read all the engine the real-time data stream, read and erase check engine trouble code, it’s an extremely useful gadget for every driver in your daily life.
Top reasons to choose Professional on-board computer KONNWEI KW206
1. The 3.5in digital LCD displays real-time parameters of the vehicle, improve the driving safety. No need to look down at dashboard from time to time. It owns all parameters you need while driving.
2. Over-speed warning, Engine Coolant Temperature warning, speed warning, Engine running voltage warning, supports self-definition warning.
3. OBD diagnosis, the KW206 supports OBDII system error code diagnosis, clear, and display OBDII data stream (text format)
4.0-100KM time recording: 0-100km acceleration test
5. Diversified display of car parameters function, supports real-time display of 95 sets of data, including Fuel Level, Engine Load Value, Fuel Consumption, Oxygen sensor reading, B1S1, B2S1 etc.
6. Support all OBD2 full protocol and commands, including J1850 dual protocol, ATTPS etc.
7. Support unit switch, imperial unit and metric unit, or switch a single parameter unit separately, such as KM ---Mile, Fahrenheit to Celsius
8. Fast data update rate, low latency and fast response to real time information.
9. Automatically turn off shut down when the voltage is lower than the engine off voltage, no need to unplug it from OBDII port.
10. Automatic switching of brightness during day and night.
11. Supports multilingual language interface.
12. Supports life-time free update and upgrades via KONNWEI Uplink App.
Long press "ESC" button for 3 seconds, you can enter into main menu for settings.
Settings:
1.Languges: English ,Russian, Spanish.
2.System para set : Unit , Button soud, Alarm sound, Scan protocol tip, Bright adjustment,Screen Rotation,Restore default.
3.OBD para set: Start voltage, Capacity, Is stop&start car, Init mlie,Init fuel,Mile cali Ratio, Fuel Cli Ratio, VOL cali, Restore efault.
4.Alream set: RPM alarm, VSS alarm,ECT alarm,VOL alarm,Restore default
5.OBD diagnose: Data stream, Read codes, Clear codes
6.0-100 km time: 0-100km acceleration test
7.About - Software and hardware version
Long prsss ‘OK’ Button you can get into data selection menu
it is support seelct 95 kinds of data real-time display:
(Warm tip: Some low-end car models can only select 43 kinds of real-time data，because low-end models do not support more data)
1.Calculated load value
2.Engine coolant Temperature
3.Intake mainifold absolute pressure
4.Engine RPM
5.Vechile Speed
6.ignition timing advance for #1 cylinder
7.Intake air temperature
8.Air flow rate from mass air flow sensor
9.Absolute throttle position
10.Oxygen sensor output voltage(B1-S1)
11.Short Term Fuel Trim(B1-S1)
12.Oxygen sensor output voltage(B1-S2)
13.Short Term Fuel Trim(B1-S2)
14.Oxygen sensor output voltage(B1-S3)
15.Short Term Fuel Trim(B1-S3)
16.Oxygen sensor output voltage)(B1-S4)
17.Short Term Fuel Trim(B1-S4)
18.Oxygen sensor output voltage(B2-S1)
19.Short Term Fuel Trim(B2-S1)
20.Oxygen sensor output voltage(B2-S2)
21.Short Term Fuel Trim(B2-S2)
22.Oxygen sensor output voltage(B2-S3)
23.Short Term Fuel Trim(B2-S3)
24.Oxygen sensor output voltage(B2-S4)
25.Short Term Fuel Trim(B2-S4)
26.Distance Traveled while MIL is activated
27.Fuel Rail Presure
28.Equivalence ratio （lambda）(B1-S1)
29.Oxygen sensor voltage(B1-S1)
30.Equivalence ratio （lambda）(B1-S2)
31.Oxygen sensor voltage(B1-S2)
32.Equivalence ratio （lambda）(B1-S3)
33.Oxygen sensor voltage(B1-S3)
34.Equivalence ratio （lambda）(B1-S4)
35.Oxygen sensor voltage(B1-S4)
36.Equivalence ratio （lambda）(B2-S1)
37.Oxygen sensor voltage(B2-S1)
38.Equivalence ratio （lambda）(B2-S2)
39.Oxygen sensor voltage(B2-S2)
40.Equivalence ratio （lambda）(B2-S3)
41.Oxygen sensor voltage(B2-S3)
42.Equivalence ratio （lambda）(B2-S4)
43.Oxygen sensor voltage(B2-S4)
44.Commanded EGR
45.EGR error
46.Commanded Evaporative purge
47.Fuel level input
48.Number of Warm-Ups since DTCs cleared
49.Distance Traveled since DTCs cleared
50.Barometric pressure
51.Equivalence ratio （lambda）(B1-S1)
52.Equivalence ratio （lambda）(B1-S2)
53.Equivalence ratio （lambda）(B1-S3)
54.Equivalence ratio （lambda）(B1-S4)
55.Equivalence ratio （lambda）(B2-S1)
56.Equivalence ratio （lambda）(B2-S2)
57.Equivalence ratio （lambda）(B2-S3)
58.Equivalence ratio （lambda）(B2-S4)
59.Catalyst Temperature Bank 1,sensor 1
60.Catalyst Temperature Bank 2,sensor 1
61.Catalyst Temperature Bank 1,sensor 2
62.Catalyst Temperature Bank 2,sensor 2
63.Absolute load value
64.Fuel/air commanded equivalence ratio
65.Relative throttle position
66.Ambient air temperature
67.Absolute throttle position B
68.Absolute throttle position C
69.Accelerator pedal position D
70.Accelerator pedal position E
71.Accelerator pedal position F
72.Commanded throttle actuator control
73.Engine Run time while MIL is on
74.Engine Run time since DTCs cleared
75.Alcohol fuel percentage
76.Absolute Evap system vapor pressure
77.Evap system vapor pressure
78.Short term Sec.O2 sensor fuel trim - B1
79.Short term Sec.O2 sensor fuel trim - B3
80.Long term Sec.O2 sensor fuel trim - B1
81.Long term Sec.O2 sensor fuel trim - B3
82.Short term Sec.O2 sensor fuel trim - B2
83.Short term Sec.O2 sensor fuel trim - B4
84.Long term Sec.O2 sensor fuel trim - B2
85.Long term Sec.O2 sensor fuel trim - B4
86.Fuel rail pressure(absolute）
87.Relative Accelerator pedal position
88.Hybrid battery pack remaining life
89.Fuel injection Timing
90.Engine fuel rate
91.Voltage
92.Total Mile
93.Total fuel
94.trip mile
95.trip fuel
Support Protocols:
Support full obd2 protocols, include J1850:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
NOTE:
Even though it compatible with almost all cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special designed, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand at 2005-2007.
Warning:
Not support hybrid car and electric car.
Not Support Russian Cars VAZ,UAZ,LADA ;
Not works with Ssangyong
Not Support Opel Corsa c 2004 1.3 CDTI
Nor Support Citroen C4 ，C5
Not support Renault logon and Megane
Support Languages:
English , Russian, Spanish.
Language: english, russian, spanish
Plug type: USB
