Features:
1. This power amplifier adopts TI import TPA3116D2 as the core, and the official data single is 50W*2.
2. The engineer reads through the materials and combines his own experience to develop a 50W*2 double core technology by means of bridge connection, and the theory can reach 100W*2.
3. Because this is a digital , its efficiency can reach over 90%, so it has the advantages of high power and low heat.

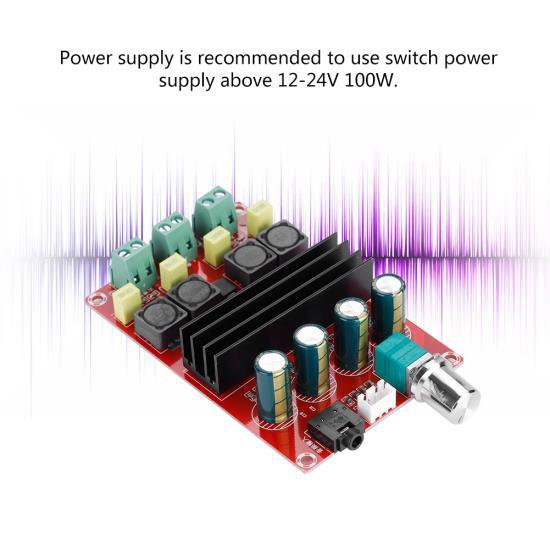

4. Power supply is recommended to use switch power supply above 12-24V 100W.
5. This board is the finished board, connected to the power and sound box to check the new experience brought by pure digital music!
Specification:
Material: ABS
Color: Red
Selection: TPA3116
Input Power: DC12-24V
Output Power: 2*100W
Input Resistance: 51K*2
Output Match: 4-8 ohms
Frequency Response Range: 14-100Kz
SNR: 100db
Output Channel: 2 (left channel + right channel)
Size: Approx. 10 * 6.5 * 2 cm / 3.9 * 2.6 * 0.8 in
Package list:
1 * Power Amplifier Board
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
